    Healthy Snack Stainless Steel Chocolate Bar Production Line

    Ask Lasest Price
    Brand Name : OEM
    Model Number :
    Certification :
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability :
    Delivery Time : 15-25days
    • Product Details
    • Company Profile

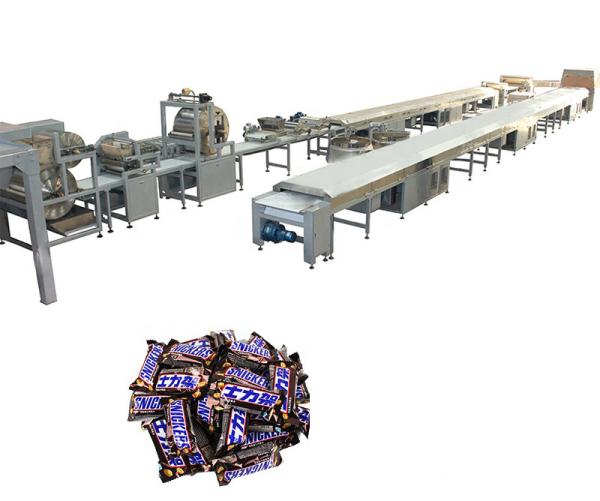

    Healthy Snack Stainless Steel Chocolate Bar Production Line

    Healthy Snack Stainless Steel Chocolate Bar Production Line​


    Products Description


    The production line is mainly used for producing producing different kind of bars with or without chocolate coating. The multi-functional production line is consists four section: cooking and mixing ; bar forming unit (including sheet forming/caramel depositing/nuts mixing/cooling/slitting and guillotine); chocolate enrobing and cooling unit; automatic conveying and flow packing unit. The cooking and mixing equipments are flexibility and different base on different technology for different types of bars; the bar forming section can be used for various kinds of materials such as fondant, aerated mass, caramel or mixed cereal, praline, condensed fruit, jelly etc..The universal bar forming principle is that bar core materials first sheeted by chilled roller, and then combined with nuts to cooling, slitting and guillotine to get bar shape and then move to the chocolate enrobing line which optional unit for chocolate coating products.


    Parameters

    Model
    COB400
    COB600
    COB800
    COB1000
    TTP5000
    Capacity
    400kg/h
    600kg/h
    800kg/h
    1000kg/h
    1200kg/h
    Steam Requirement
    300kg/h, 0.2-0.8MPa
    600kg/h, 0.2-0.8MPa
    900kg/h, 0.2-0.8MPa
    1200kg/h, 0.2-0.8MPa
    1500kg/h, 0.2-0.8MPa
    Compressed Air Requirement
    0.9m3/min; 0.6MPa
    1.2m3/min; 0.6MPa
    1.5m3/min;
    0.6MPa
    1.8m3/min; 0.6MPa
    2.1m3/min;0.6MPa
    Working Condition
    18-25℃ temperature humidity 55%
    Workshop Size
    28*4.5*>2.8m
    35*5*>3m
    38*6*>3.2m
    45*8>3.5m
    48*5>3.8
    Electric Power Needed
    65kW/380-220V
    90kW/380V-220V
    110kW/380-220V
    135kW/380-220V
    140kW/380-220V
    Weight Of Machine
    17500kg
    20500kg
    23500kg
    26500kg
    28500kg

    Healthy Snack Stainless Steel Chocolate Bar Production LineHealthy Snack Stainless Steel Chocolate Bar Production Line
